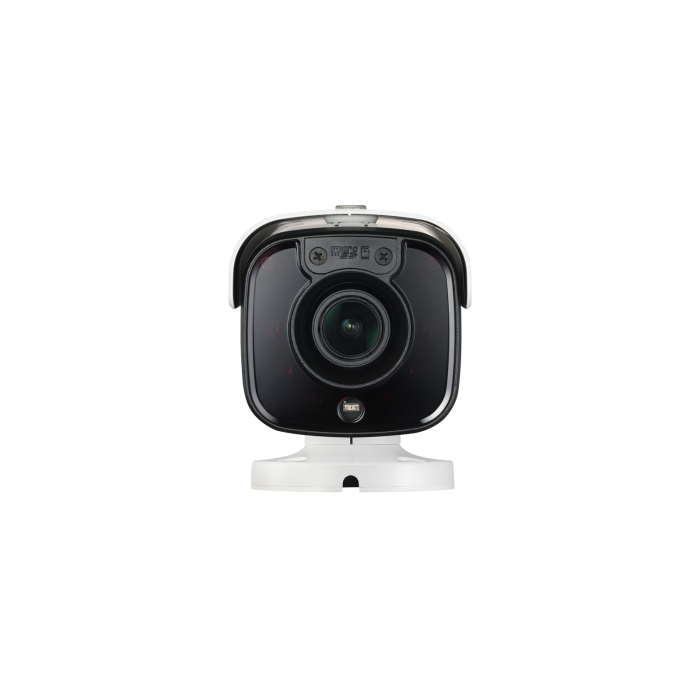

IDIS DC-T4536HRX is a 5-Megapixel Resolution (2592 x 1944) IP Bullet Camera with built-in IR night vision and 2.8mm fixed lens.
The IDIS DC-T4536HRX is a 5-Megapixel Resolution (2592 x 1944) IP Bullet Camera with built-in IR night vision and 2.8mm fixed lens. The DC-T4516WRX is Basic Ai security camera with the following video analytics functions: Tampering, Trip Zone, Motion Detection, Alarm in, Audio Detection. This network IP camera is enclosed in an IP67 rated & IK10 weatherproof housing so that it can be used for indoor and outdoor installation. Waterproof Cable Installation protects RJ45 connector / PoE Port of the camera from water. The built-in IR LEDs provide infrared illumination up to 99 feet. MicroSD Card Slot will give you the Smart Failover facilities (Up to 512GB). This IP camera is great for Apartment Use, Private Lounge and Industrial installation with High Level security protection. The fixed 2.8 mm lens gives 4:3 mode: 104.8º(H) 76.9º(V) 130º(D), 16:9 mode: 104.8º(H) 57.1º(V) 122.9º(D) field of view. The 3-axis mechanical design allows installers to install camera Celling Mount / Pole Mount / Wall Mount / Corner Mount / Outdoor flexibly. The optional installation junction box allows all of the camera's cables to be neatly housed.
Features:
5MP (2592x1944) resolution
Fixed-focal lens (f=2.8mm)
micro SD/SDHC/SDXC
Alarm in / out
Two-way audio
IK10 / IP67 supports
PoE (IEEE 802.3af Class 3)
Day and night (ICR)
True wide dynamic range (WDR)
IR LED (30 m / 98.4 ft (4 ea))
Supports ONVIF
Tamper & Motion Detection, Line Crossing works as Basic Ai
IDIS DC-T4536HRX Camera:
IDIS DC-T4536HRX Camera Profile:
| Specification | DC-T4516WRX |
|---|---|
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 4:3 mode: 104.8º(H) 76.9º(V) 130º(D) | 16:9 mode: 104.8º(H) 57.1º(V) 122.9º(D) |
| Min. Illumination | COLOR: 0.15 lux @ F2.0 | B/W: 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30m / 98.4 ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode (Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - | Network |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max. Frame Rate | 4:3 mode: 30ips: 2592 x 1944(WDR) | 16:9 mode: 30ips: 2592 x 1456(WDR) |
| Supported Resolution | 4:3: 2592x1944, 1920x1440, 1280x960, 640x480 | 16:9: 2592x1456, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, | RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Signed firmware, Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1/1 |
| Alarm In / Out | 1/1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -30°C ~ +55°C (-22°F ~ +131°F) | *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE IEEE 802.3af (Class 3) |
| Power Consumption | PoE, IEEE 802.3af (Class 2), 7.9W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 75mm x 70mm x 195.8mm (2.95" x 2.75" x 7.7") |
| Weight | 0.66Kg (1.46 lb) |
Why should select IDIS DC-T4536HRX Camera? Is it value for money?
What is IDIS DirectIP Technology & What is it’s Benefits?
DitectIP is IDIS own developed network protocol used in all IDIS IP Products. DirectIP network throughput delivers stable UHD quality video transmission enabling high-performance real-time monitoring and recording from multiple megapixel cameras direct to NVRs without any degradation of image quality. DirectIP plug-and-play technology ensures easy installation without IP setup, implementation and straightforward operation. User also benefits from advanced NVR features such as smart search and event management functionality. DirectIP guarantees a low cost of ownership (TCO) for customers of any size.
DirectIP is a proprietary mutual authentication system supported by all IDIS IP products. When IDIS IP cameras are connected to an IDIS NVR, both devices mutually authenticated each other automatically through DirectIP. The authentication data is stored and protected on both the IP cameras and the NVR.
What is the ultimate commitment of DirectIP?
IDIS IP Camera Configuration tools:
IDIS Discovery: (Managing multiple IDIS devices in the LAN & WAN)
We can find all IDIS products in network at IDIS Discovery tools. We will get product model, name, IP Address, MAC address, Firmware version and IP protocol here.
IDIS Intelligent Codec + MAT:
IDIS Intelligent Codec is advanced compression technology that dramatically enhances IDIS’s complete H.265 range of full-HD IP cameras and network video recorders (NVRs), which already deliver up to 30~50% bit rate reduction savings on storage space and network bandwidth. IDIS Intelligent Codec delivers up to 30~50% bit rate reduction on top of H.265, achieving a total up to 65~75% reduction for users. By leveraging of IDIS motion adaptive transmission (MAT) technology—which reduces the bit-rate by restricting transmission during live surveillance periods without movement—IDIS delivers a further reduction. From an H.264 baseline, IDIS Intelligent Codec plus MAT delivers a total savings of up to 90%, depending on scene and resolution. The less complex the scene and the less movement present, the greater the compression. IDIS Intelligent Codec makes the complete IDIS H.265 range cost-effective, ensuring IDIS’s signature low total cost of ownership.
What is the Ultimate benefit of Intelligent Codec?
IDIS NDAA Complaint Security Camera:
IDIS DC-T4536HRX is NDAA compliant Camera. That means that it is not manufactured by any of the manufacturers on the NDAA (the National Defense Authorization Act) list of banned manufacturers. This camera does not use any materials from banned manufactures either. The NDAA ban includes telecommunications equipment produced by Huawei Technologies Company or ZTE Corporation, as well as video surveillance and telecommunications equipment produced by Hytera Communications Corporation, Hangzhou Hikvision Digital Technology Company, or Dahua Technology Company.
IDIS Cyber Security:
Network Security through a powerful mutual authentication system. DirectIP is proprietary mutual authentication system, supported by all IDIS IP products. When IDIS IP Cameras are connected to an IDIS NVR, both devices mutual authenticate each other automatically through DirecIP. The authentication data is stored and protected on both the IP camera and the NVR. IDIS Cyber Security: Cyber Security is the practice of protecting systems, networks, and programs from digital attacks. Cyber-attacks are usually aimed at accessing, changing, or destroying sensitive information. The IDIS three-part cybersecurity protection system protects your data securely.
IDIS Built-in Video Analytics:
Tamper Detection:
Detects video blockage, redirecting, defocusing, or spray-painting as temper detection and give PUSH Mobile Notification with video Clip at IDIS mobile Apps and also can be noticed from control room.
Trip Zone:
It is a feature of DIP camera. User defines an area in the scene, where the area is being monitored to detect an object that crosses the zone inward or outward. It can be used to trigger an event condition. As a benefit, system send PUSH Mobile Notification with video Clip at IDIS mobile Apps and send event to control room.
Motion Detection:
If you want to secure a specific area in front of camera view, so that any movement inside the area can get notification, you can select event -> motion -> zone. Motion detection allows you get Push mobile notification with video clip if someone moves IN or Out inside the selected zone / area. Can be get alert from control room as well. Also, Local notification through adding Bell / Siren at Camera & NVR Point.
Alarm IN / Alarm Out Port:
DirectIP cameras have built-in alarm in/out ports. Normally, alarm input has TTL voltage level and NC/NO programmable. Regarding the alarm in/out specifications, you can connect your alarm devices / sensor such as a Door Contact, Active PIR, smoke sensor to the alarm in port on the IDIS DirectIP selected cameras. Using the below setup configuration, you can use external alarm devices directly wired to the camera input which will be seen by the system as if it were connected to the NVR directly.
Alarm Input:
DirectIP cameras have built-in alarm in/out ports. Normally, alarm input has TTL voltage level and NC/NO programmable. Regarding the alarm in/out specifications, you can connect your alarm devices / sensor such as a Door Contact, Active PIR, smoke sensor to the alarm in port on the IDIS DirectIP selected camera.
Alarm Realy Output:
Alarm output only supports the NO mode with relay output. The alarm relay output ports can be used to connect external alarm devices such as strobe lights and audio sirens to the alarm output port.
Audio Input:
The IDIS Camera has audio input ports and audio out relay output ports. Installer can easily connect external audio sensors such as External MIC to the audio input port of this IP camera. You can follow the connection diagram to learn how to connect a sensor to the sensor in relay input port of this IP Camera.
Audio Output:
The audio relay output ports can be used to connect external active audio outdoor horn speaker to the audio output port for two-way audio communication. You can follow the connection diagram to learn how to connect a siren to the alarm relay output port of this IP Camera.
IDIS DirectIP Event Configuration: Watch Video
https://www.youtube.com/watch?v=9bTznMrXnNc
MicroSD Card Slot:
View Your Security Cameras Remotely
IDIS camera view can be monitored from anywhere through IDIS mobile plus app on your android or iPhone. You will get immediate notification if any event happens in your camera point. Apply Tamper Detection, Motion Detection, Line Crossing event to get alert.
IDIS Mobile View App:
IDIS CCTV Camera has specialized in surveillance systems with remote viewing capabilities, we are recommending the IDIS Mobile Plus app. Android: 5.0 and later AND iOS[iPhone]: iOS 11.0 and later will be required for successful operation. The app works with 2FA (two-factor authentication for secure access to DirectIP NVRs.
Support user preference for portrait or landscape views as well as dark mode.
Supports seamless viewing of up to 4K live streams on mobile devices from remote locations and with options for 1/4/9/16 split screen monitoring
Gives users remote situational awareness via push alarm notification, event and time lapse queries, two-way audio communication, and image capture.
IDIS Mobile Apps: Watch Video:
https://www.youtube.com/watch?v=vNp3ZNIdAcc&t=18s
IDIS CMS [IDIS CENTER]:
Lisence Free Video Management Software:
IDIS DC-t4516WRX Camera Installation and Angle Adjustment:
Indoor Installation:
Here is the Picture of Indoor Installation of the DC-T4536HRX
